Final Drive Type J - Installation Instructions

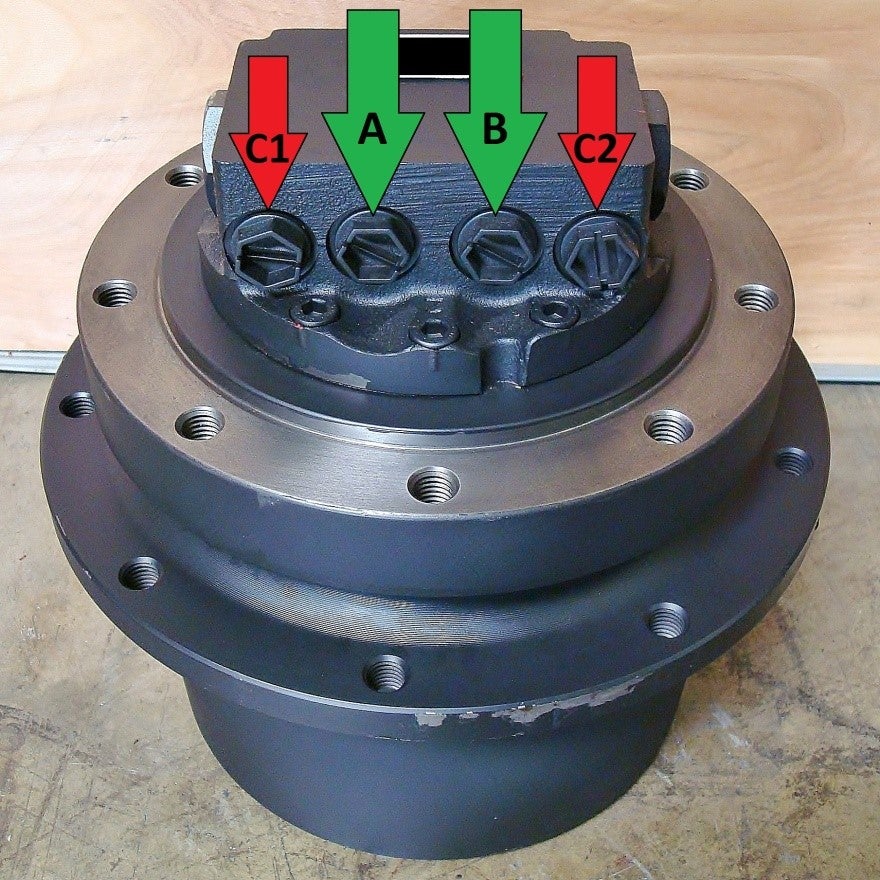

A – B PORTS:

Located in the center of the flange these are the inlet and outlet ports. These will be the two larger diameter hoses. Transfer adapters from previous drive and complete hose connections.

C1 – C2 Ports:

The drain ports are located to the right and left of the A/B ports. The position of the drain port can be changed by placing a plug in either C1 or C2. It’s important to always attach the case drain hose to the uppermost port so any air can escape the case and leave the bottom port plugged. Transfer adapter from previous drive and complete connection.
